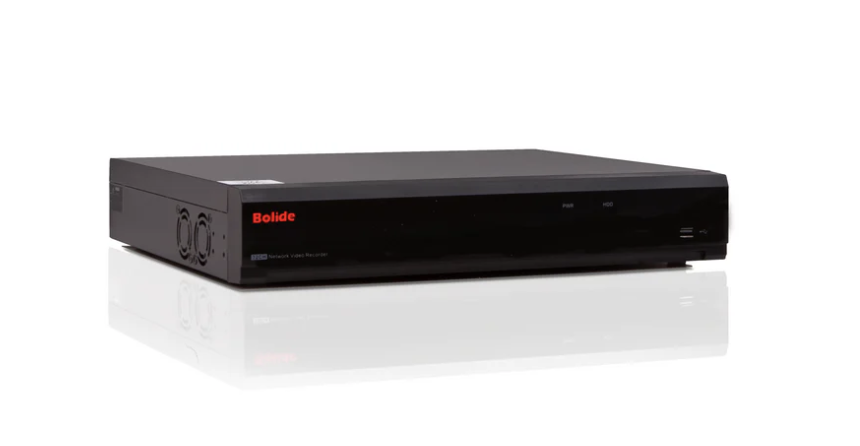

32-Channel with 16-Port POE 640Mbps | BN-NVR/32NX-PLUS/NDAA
Specifications
InformationRecording BandwidthMax 640Mbps ThroughputRecording Resolution8MP(4K), 5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)Display Split1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 / 32 / 36 / 64Recording Frames Per Second
8MP (4K): 240 FPS
4MP: 480FPS
2MP: 960FPS
Output Interface2 HDMI Display Resolution1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160RS-485YesONVIFONVIF Profile S Version 2.6POENonePower SupplyATX 280WDimension (W×D×H)17.32” x 18.11” x 7.44” ( Rackmount Ears Included)E-SATAYesLine inYesAlarm Input/out16CH Input / 1CH OutputAudio1-Channel Audio In / 1-Channel Audio OutEthernetRJ-45 port (1000M)Mobile Device AccessYes, Bolide Quick Connect for iOS and AndroidInternal HDD 4 SATA HDDs, each HDD up to 12TBUSB2x 3.0 USB for video backup/ firmware upgrade , 1x 2.0 USB for mouse
